Description
Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc .When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Pls note:
1) The inline material is PTFE.
2) Power supply is 24Vdc, if you need 220VAC, pls inform us when order.

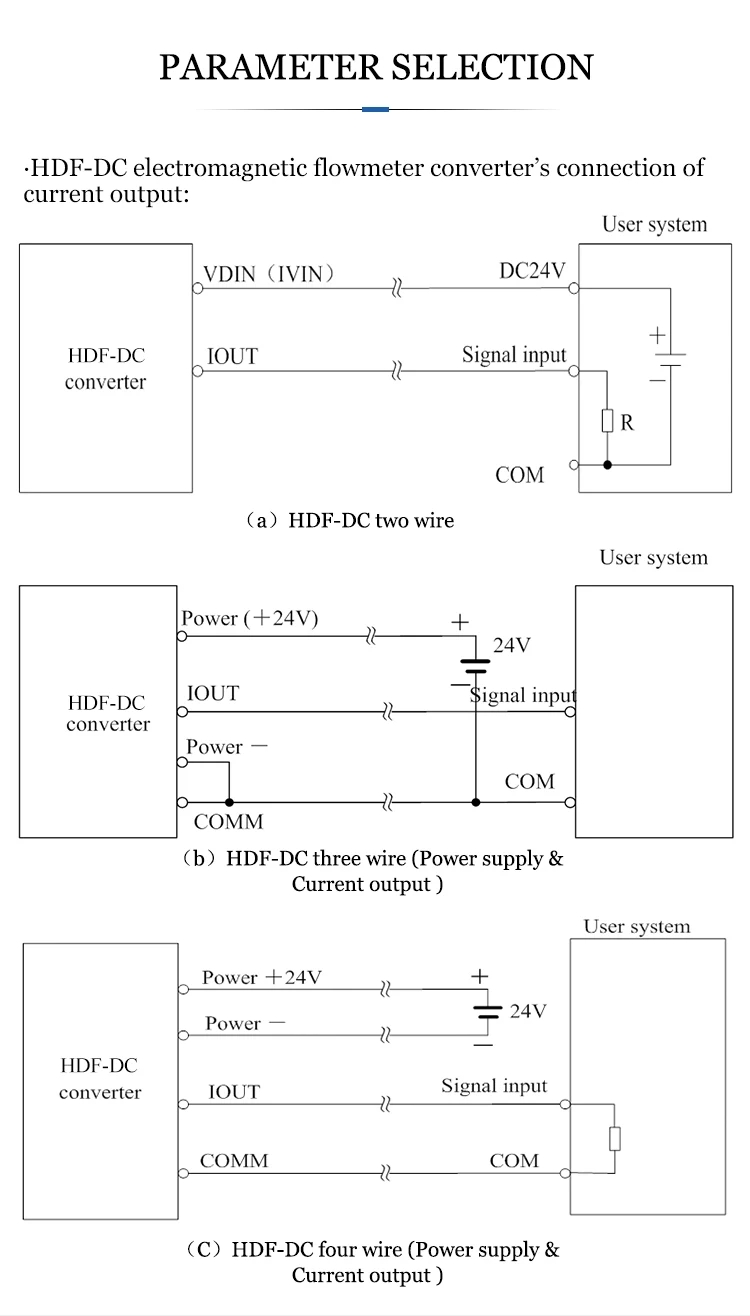

3) Output: 4-20mA+Pulse; Pls inform us if you need RS485.
4) Flange type is DIN standard, let us know if you need ANSI or JIK standard.

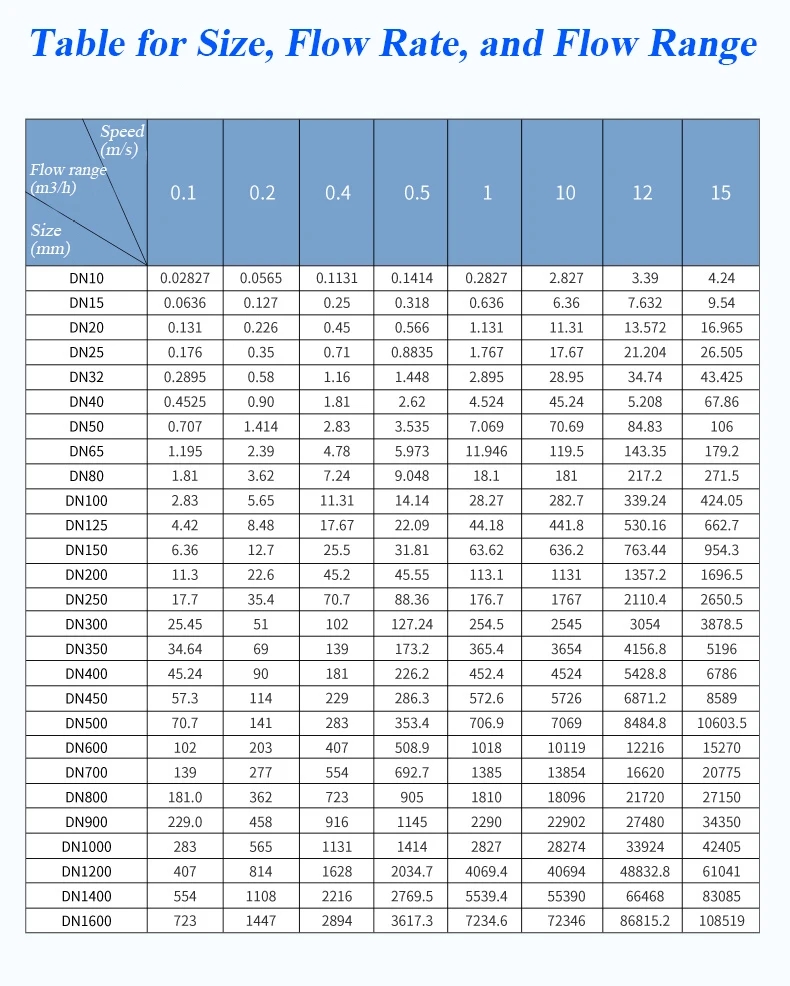

5) Pls check the flow range for each size and make sure the flow range will satisfy you. Contact us if flow range is different with your application and we will calibrate for you.
