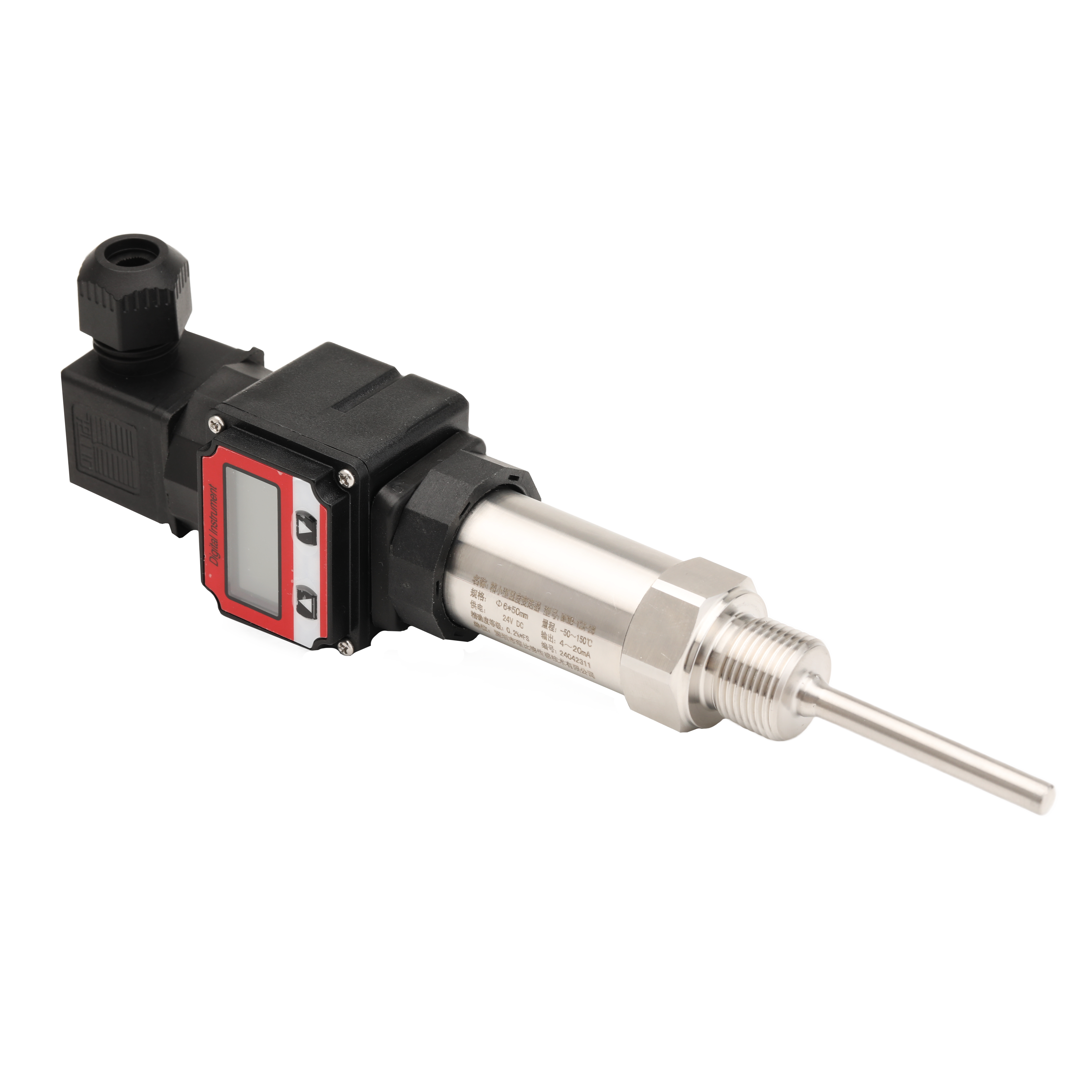

LCD display, compact temperature transmitter, 4-20ma, 0-10V

Measuring range

-200-600Deg.C

Power supply

24V

Output signal

4-20mA

Accuracy level

0.5%F.S

Sensitive originals

PT100

Insulation strength

100MΩ

Long-term stability

≤0.2%F.S/year

Thermal response time

≤30s

Insert diameter

φ8

Explosion-proof grade

Explosion-proof ExiaIICT6

Enclosure protection

IP65

The integrated temperature transmitter measures the temperature of the measured medium by taking advantage of the resistance of the platinum resistor as a function of temperature. The product has three parts: temperature sensor, compensation circuit, and conversion circuit. It has the advantages of stable performance, high sensitivity, and high reliability.

The integrated temperature transmitter adopts an all-welded active thread structure and is easy to install. It is widely used in petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, natural gas, and other automated temperature measurement and control systems.

The transmitter with all-welded construction and high-strength housing is widely used in automatic temperature measure contral system of petroleum machinery, chemical machinery, pump and compressor, electricity, boiler, natural gas etc.
Product name： LCD display, compact temperature transmitter, 4-20ma, 0-10V；
Temperature range: -50°C ~+150°C / -58℉~+302℉；
Output signal: 4-20mA；
Transmitting: 2-Wire；
Accuracy: ±0.5%FS；
Power supply: 24V DC；
Male Thread ：1/2″ NPT；
Probe rod length: 30MM；
Probe Diameter : 6mm/0.24″
Package content: 1 x Temperature Transmitter

Measuring range	-200-600Deg.C
Power supply	24V
Output signal	4-20mA
Accuracy level	0.5%F.S
Sensitive originals	PT100
Insulation strength	100MΩ
Long-term stability	≤0.2%F.S/year
Thermal response time	≤30s
Insert diameter	φ8
Explosion-proof grade	Explosion-proof ExiaIICT6
Enclosure protection	IP65
